Engine compartment layout

Main components for checking and refilling

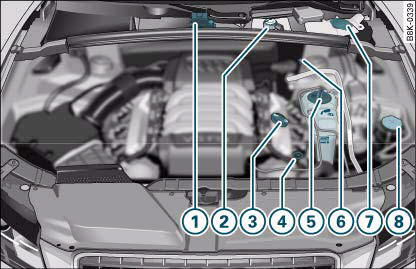

Audi A4: Engine compartment layout. Typical locations of fluid containers, engine oil dipstick and

Typical locations of fluid containers, engine oil dipstick and engine oil filler cap

  1. Jump-start terminal (+) under a cover
  2. Brake fluid reservoir (Audi A4: Engine compartment layout. Engine oil filler cap ())
  3. Engine oil filler cap (Audi A4: Engine compartment layout. Engine oil dipstick* (orange))
  4. Engine oil dipstick* (orange)
  5. Radiator expansion tank (Audi A4: Engine compartment layout. Jump-start terminal (-) with hexagon head)
  6. Jump-start terminal (-) with hexagon head
  7. Windscreen washer container (Audi A4: Engine compartment layout. Hydraulic fluid reservoir for power steering)
  8. Hydraulic fluid reservoir for power steering

The positions of the engine oil filler cap and the engine oil dipstickgggggg 256, fig. 252 (items 3 and 4) may be different on some engine versions.
