Fuses
Self-help / Fuses and bulbs / Fuses

Changing a fuse

If a fuse has blown it must be replaced.

Audi A4: Fuses. Left side of dash panel: Fuse cover

Left side of dash panel: Fuse cover

Ц Identify the fuse for the failed component.
Ц Switch off the ignition and the component concerned.
Ц Remove the fuse box cover ⇒ fig. 283.
Ц Take the plastic clip from inside the fuse cover, fit it onto the blown fuse, and pull the fuse out.
Ц Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same amp rating.

The various electrical circuits are protected by fuses. The fuse boxes are located behind covers on the left and right sides of the dash panel and in the compartment on the right side of the boot.

A plastic clip for removing the fuses is provided in the fuse cover on the left side of the dash panel. There is also a sticker listing the fuses in each of the fuse boxes in the dash panel.

Audi A4: Fuses. Never attempt to УrepairФ a fuse or replace it by fitting a fuse with a higher Caution

Never attempt to УrepairФ a fuse or replace it by fitting a fuse with a higher rating - risk of fire! It could also cause damage to other parts of the electrical system.

Audi A4: Fuses. If a newly replaced fuse blows again after a short time, the electrical system Note

If a newly replaced fuse blows again after a short time, the electrical system must be checked by a qualified workshop as soon as possible.

Fuses on the driver's side

Audi A4: Fuses. Diagram of fuse box (left-hand drive vehicle)

Diagram of fuse box (left-hand drive vehicle)

Some of the items listed are only fitted on certain models or are optional extras.

Please note that the following list, while correct at the time of printing, is subject to alterations. If discrepancies should occur, please refer to the sticker on the inside of the fuse cover for the correct information for your vehicle.

The seats with electrical adjustment are protected by circuit breakers. These reset automatically after a few seconds when the overload has been corrected.

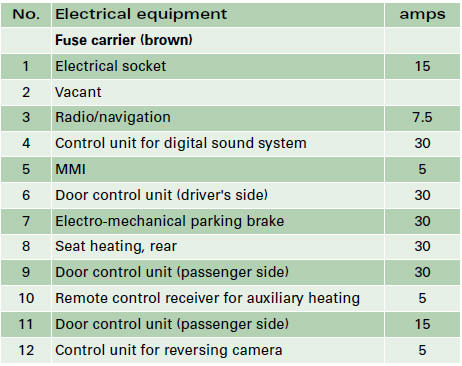

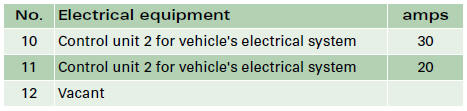

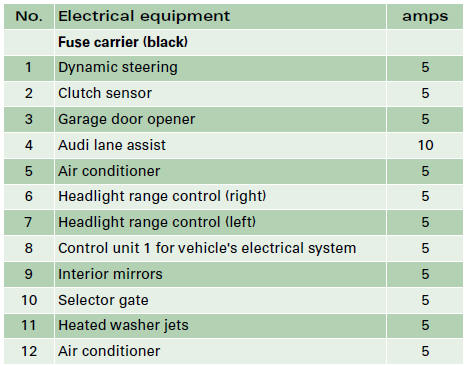

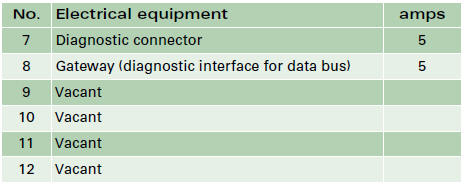

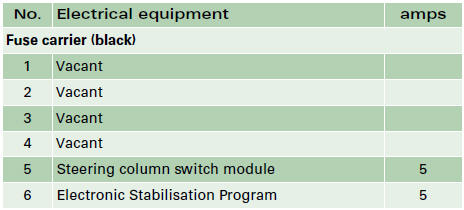

Fuse list

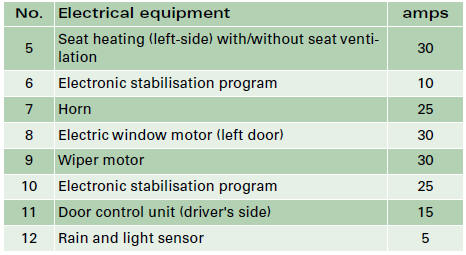

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses. Fuses on the passenger's side

Fuses on the passenger's side

Audi A4: Fuses. Diagram of fuse box (left-hand drive vehicle)

Diagram of fuse box (left-hand drive vehicle)

Some of the items listed are only fitted on certain models or are optional extras.

Please note that the following list, while correct at the time of printing, is subject to alterations. If discrepancies should occur, please refer to the sticker on the inside of the fuse cover for the correct information for your vehicle.

The seats with electrical adjustment are protected by circuit breakers. These reset automatically after a few seconds when the overload has been corrected.

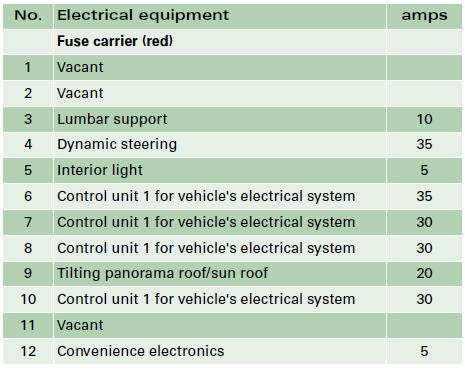

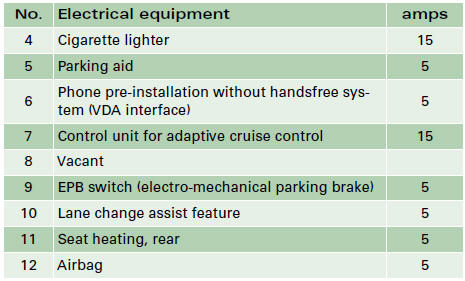

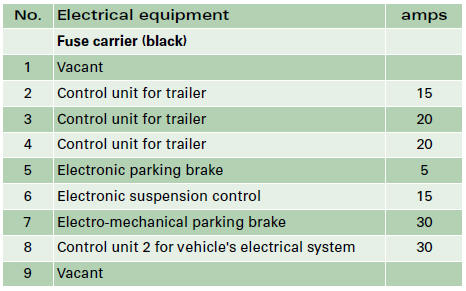

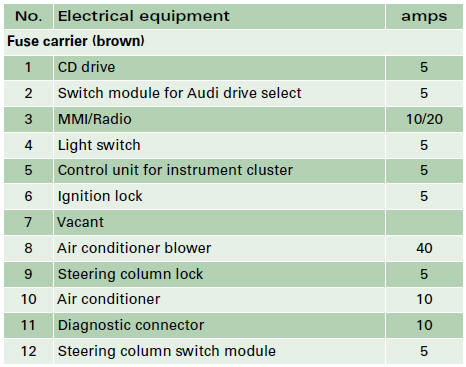

Fuse list

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses. Fuse list for luggage compartment

Fuse list for luggage compartment

Audi A4: Fuses. Diagram of fuse panel

Diagram of fuse panel

Ц Remove the trim.
Ц Open the fuse cover.

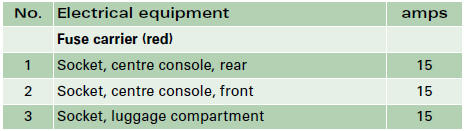

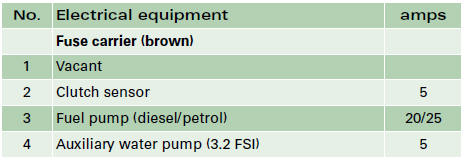

Fuse list

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses.

Audi A4: Fuses. Bulbs
