Audi A4 Owners Manual

Controls and displays
Controls / Controls and displays

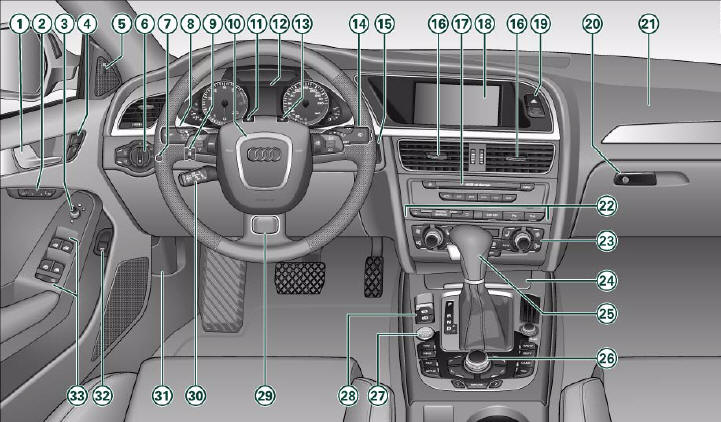

Audi A4: Controls and displays. Some of the items of equipment listed in this section are only fitted on certain

Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.

  1. Door handle
  2. Seat memory
  3. Electric adjuster for exterior mirrors
  4. Central locking switch
  5. Button for side assist
  6. Light switch
  7. Instrument lighting
  8. Control lever for:
    − Turn signals and main beam headlights
    − lane assist
  9. Headlight range control
  10. Steering wheel with:
    − Horn
    − Driver's airbag
    − Controls for audio, TV*, telephone and speech dialogue system*
    − Paddle levers for tiptronic gearshift
  11. SET button
  12. Instrument cluster
  13. Reset button for trip recorder
  14. Control lever for:
    − Windscreen wipers and washer
    − On-board computer
  15. Ignition lock
  16. Air outlets with thumbwheel
    − For deluxe automatic air conditioner
    − For deluxe automatic air conditioner plus
  17. Depending on equipment fitted: − Radio
    − CD changer
  18. Depending on equipment fitted: − Radio display
    − MMI display
  19. Hazard warning lights
  20. Glove box
  21. Front passenger's airbag
  22. Switches for the following (as applicable):
    − Audi parking system
    − Electronic Stabilisation Program (ESP)
    − Electric sun blind
    − Control for Audi drive select
  23. Air conditioner, depending on equipment fitted:
    − Deluxe automatic air conditioner
    − Deluxe automatic air conditioner plus
  24. Ashtray with cigarette lighter
  25. Depending on gearbox fitted, gear lever or selector lever for:
    − multitronic®
    − Manual gearbox
  26. Depending on equipment fitted:
    − MMI control console or
    − Switch for Audi parking system
    − Switch for Electronic Stabilisation Program (ESP OFF)
    − Switch for electric sun blind
    − Control for Audi drive select
  27. Start/stop button
  28. Electro-mechanical parking brake
  29. Adjustable steering column (hidden behind steering wheel)
  30. Depending on equipment fitted:
    − Cruise control system
    − adaptive cruise control
  31. Bonnet lock release
  32. Switch for releasing the boot lid
  33. Electric windows
