Description

The air conditioner can be used to set a comfortable interior temperature in the vehicle.

The air conditioner provides heating and ventilation and also cools and dehumidifies the air inside the vehicle.

The air conditioner is fully automatic and will maintain the desired temperature at a constant level. To achieve this, the temperature of the air supplied to the interior, the blower speed (volume of air delivery) and the air distribution are regulated automatically. The system also allows for the effect of strong sunlight, so there is no need for manual adjustment. For these reasons it is advisable to use the automatic mode for the comfort of all the passengers in virtually all conditions throughout the year.

Please note:

The humidity of the air is automatically reduced when the system cools the interior of the vehicle. This helps to prevent condensation on the windows.

If the humidity and temperature outside the vehicle are high, condensation can drip off the evaporator in the air cooling system and form a pool underneath the vehicle. This is normal and does not indicate a leak.

If the outside temperature is low, the blower normally only switches to a higher speed once the coolant has warmed up sufficiently (this does not apply to the defrost setting).

In order to achieve maximum engine power, the air conditioner compressor is temporarily switched off when pulling away from a standstill with full throttle.

The compressor also switches off if the coolant temperature is excessively high, to ensure adequate engine cooling under extreme loads.

Pollution filter

The pollution filter (a particle filter) serves as a barrier against impurities in the outside air, including dust and pollen, and odours. The air is also filtered when the air recirculation mode is activated.

For the air conditioner to work with maximum efficiency, the pollution filter element must be replaced at the intervals specified in the Service Schedule.

If the vehicle is driven in areas with a high level of air pollution and the filter is no longer fully effective, it may be necessary to change the filter element more frequently.

Key-coded settings

The currently selected air conditioner settings are automatically stored and assigned to the remote control key.

Power management

To prevent the battery from becoming discharged and to maintain the necessary power level, the system will temporarily shut off the electrical components that are using a lot of power, or reduce the current they are consuming. Heating systems in particular use a large amount of electrical power. If you notice, for instance, that the rear window heater is not working, it may have been temporarily switched off by the power management function, or regulated to a lower heat output. These systems will be available again as soon as sufficient electrical power is available.

Audi A4: Deluxe automatic air conditioner. For safety reasons it is important that all the windows are kept free of WARNING

For safety reasons it is important that all the windows are kept free of ice, snow and condensation. These can cause poor visibility and lead to an accident. Please familiarise yourself with the operating controls for the air conditioner, including the demist/defrost functions for the windows.

Audi A4: Deluxe automatic air conditioner. Caution

  • If you suspect that the air conditioner is damaged, switch it off to prevent further damage and have the system checked by a qualified workshop.
  • Repairs to the Audi air conditioner require specialist knowledge and special tools. For this reason, please contact a qualified workshop if the system is not working properly.

Audi A4: Deluxe automatic air conditioner. Note

  • Keep the air intake slots in front of the windscreen clear of snow, ice and leaves to ensure unimpaired heating and cooling, and to prevent the windows misting over.
  • The air from the outlets flows through the passenger compartment and out through the slots at the rear of the vehicle. Do not cover these slots with clothing or other objects.
  • The air conditioner operates most effectively with the windows and the tilting panorama roof* closed. However, if the vehicle has heated up after standing in the sun for some time, the air inside can be cooled more quickly by opening the windows for a short time.

Controls

The controls for the air conditioner at a glance.

Audi A4: Deluxe automatic air conditioner. Controls for deluxe automatic air conditioner

Controls for deluxe automatic air conditioner

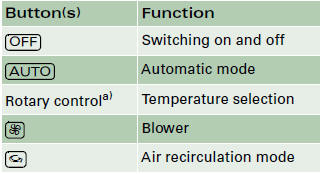

The functions can be set by turning the rotary control and are switched on and off by briefly pressing the buttons. The LEDs in the buttons light up when the function is switched on.

Audi A4: Deluxe automatic air conditioner.

Audi A4: Deluxe automatic air conditioner. Note

Note

The grille on the control console, fig. 103 must be kept free. Please ensure that it is not covered by stickers or similar. Measuring sensors are located behind it.

Switching on and off

Switching on air conditioner

Press the OFF button briefly, or
Press the AUTO button.

Switching off air conditioner

Press the OFF button to switch off the air conditioner and cut off the supply of fresh air from outside the vehicle.

The air conditioner will switch on again if one of the control buttons is pressed.

Automatic mode

The standard operating mode for all seasons.

Switching on automatic mode

Select a temperature between +16 C (60 F) and +28 C (84 F).
Press the AUTO button.

The automatic mode maintains a constant temperature inside the vehicle and dehumidifies the air. Air temperature, air delivery and air distribution are regulated automatically to reach the desired interior temperature as quickly as possible, and then to maintain this temperature. The system automatically compensates for any variations in the outside temperature and for the effect of direct sunlight.

The automatic temperature regulation only operates at temperature settings between +16 C and +28 C. If a temperature below +16 C is selected, LO appears on the display. If a temperature above +28 C is selected, the display will show HI. In the two extreme settings the air conditioner operates continuously with maximum cooling or heating output, and the temperature is not regulated automatically.

Temperature selection

Audi A4: Deluxe automatic air conditioner. Rotary control for temperature selection

Rotary control for temperature selection

Audi A4: Deluxe automatic air conditioner. Display: Temperature setting

Display: Temperature setting

Turn the rotary control anti-clockwise to reduce the temperature or clockwise to increase the temperature ⇒ fig. 104.

The temperature setting will be shown on the screen ⇒ fig. 105 for a few seconds if the sound system or MMI* is switched on.

Blower

The automatically selected blower speed can be reduced or increased manually if required.

Audi A4: Deluxe automatic air conditioner. Blower button and rotary control

Blower button and rotary control

Audi A4: Deluxe automatic air conditioner. Display: Blower setting

Display: Blower setting

Press the button for the blower Audi A4: Deluxe automatic air conditioner.  Turn the rotary control to set the blower to the desired speed (and regulate the.
Turn the rotary control to set the blower to the desired speed (and regulate the volume of air delivery).

We recommend keeping the blower running at a low setting when driving slowly.

To prevent fumes or unpleasant smells from entering the vehicle, switch to the air recirculation mode by pressing the Audi A4: Deluxe automatic air conditioner. The blower speed will be shown on the screen, fig. 107 for a few seconds if the button.

The blower speed will be shown on the screen, fig. 107 for a few seconds if the sound system or MMI* is switched on.

Note

  • The blower speed may change automatically. This ensures that the selected temperature is reached as quickly as possible.
  • The blower speed cannot be regulated separately for the driver and front passenger sides of the vehicle.

Air recirculation mode

The air recirculation setting prevents fumes etc. from entering the interior.

Switching on the air recirculation mode

Press the Audi A4: Deluxe automatic air conditioner. Switching off the air recirculation mode button ⇒ .

Switching off the air recirculation mode

Press the Audi A4: Deluxe automatic air conditioner.  Press the  button, or button again, or
Press the Audi A4: Deluxe automatic air conditioner.  Press the  button. button, or
Press the Audi A4: Deluxe automatic air conditioner. button.

In this setting, the air is drawn from the interior of the vehicle, filtered and continuously recirculated. We recommend using the air recirculation mode in the following circumstances:

When driving through a tunnel or in queues of traffic, to prevent fumes entering the interior of the vehicle.

Audi A4: Deluxe automatic air conditioner. For reasons of safety you should not leave the air recirculation switched WARNING

For reasons of safety you should not leave the air recirculation switched on for too long. This mode prevents fresh air from entering the vehicle, so the windows can mist over if the air cooling is switched off. Bad visibility can cause an accident.

Air distribution

The automatically programmed air distribution can be altered manually if required.

Audi A4: Deluxe automatic air conditioner. Air distribution button and rotary control

Air distribution button and rotary control

Audi A4: Deluxe automatic air conditioner. Display: Air distribution

Display: Air distribution

Press the button for Distribution Audi A4: Deluxe automatic air conditioner.  Turn the rotary control to the desired setting..
Turn the rotary control to the desired setting.

You can use the air distribution setting to select the air outlets you wish to activate. In setting Audi A4: Deluxe automatic air conditioner. directed to the windows, in setting all the air is directed to the windows, in setting Audi A4: Deluxe automatic air conditioner. the air is directed to the driver (or passenger), and in setting the air is directed to the driver (or passenger), and in setting Audi A4: Deluxe automatic air conditioner. there are several other possible combinations, allowing you to adjust the air distribution to the footwells. In addition to this there are several other possible combinations, allowing you to adjust the air distribution to suit individual requirements.

Switch to AUTO  for automatic control of the air distribution.

The air distribution setting will be shown on the screen, fig. 109 for a few seconds if the sound system or MMI* is switched on.

Defrosting

The windscreen and side windows are defrosted or demisted as quickly as possible.

To switch on, press the Audi A4: Deluxe automatic air conditioner.  To switch off, press the  button again, button.
To switch off, press the Audi A4: Deluxe automatic air conditioner. or press the AUTO button. button again, or press the AUTO button.

The temperature is regulated automatically. The air output is increased to maximum and most of the air comes out of the outlets below the windscreen.

The air recirculation mode is switched off when the Audi A4: Deluxe automatic air conditioner. Heated rear window button is pressed.

Heated rear window

The rear window heating helps to demist the rear window.

Press the Audi A4: Deluxe automatic air conditioner. rear window heating on and off. button to switch the rear window heating on and off.

The rear window heating only works when the engine is running. An indicator lamp in the button lights up when the rear window heater is switched on.

Depending on the outside temperature, the rear window heating switches off automatically after about 10 to 20 minutes.

The rear window heating can be switched on permanently by pressing the Audi A4: Deluxe automatic air conditioner. It will then remain on until the ignition is switched off. When the rear window button for longer than two seconds. It will then remain on until the ignition is switched off. When the rear window heating is switched on, this setting will remain activated for 15 minutes after switching off the ignition.

If the engine is started again during this period of 15 minutes, the rear window heating will be switched on for about 10 to 20 minutes, depending on the exterior temperature. This means you do not have to manually switch on the rear window heating again if the vehicle has only been parked for a short time.

Audi A4: Deluxe automatic air conditioner. Switch off the heated rear window manually as soon as the rear window is clear. For the sake of the environment

Switch off the heated rear window manually as soon as the rear window is clear. By saving electrical power you can also save fuel.

AC mode

Deactivating the AC mode
Press the Audi A4: Deluxe automatic air conditioner. Activating the AC mode button.

Activating the AC mode
Press the Audi A4: Deluxe automatic air conditioner. In the AC mode, the air cooling system is switched on and the heating and ventilation button again.

In the AC mode, the air cooling system is switched on and the heating and ventilation are regulated automatically.

Audi A4: Deluxe automatic air conditioner. If the LED in the AC button should continue to light up when the AC mode has Note

If the LED in the AC button should continue to light up when the AC mode has been switched off (i.e. the air conditioner has been switched off) this is due to a defect in one of the air conditioner components. If a malfunction should occur, please contact a qualified workshop.

Air outlets

The air distribution setting directs the air to the outlets you select.

Audi A4: Deluxe automatic air conditioner. Dashboard: Location of air outlets

Dashboard: Location of air outlets

Air outlets 3 and 3

The outlets can be opened and closed by turning the thumbwheels next to them.
The direction of air delivery from these outlets can be adjusted horizontally and vertically using the adjuster in the centre of each outlet grille.

The flow of air from the outlets is controlled either automatically or manually, depending on the operating mode selected. All the outlets can provide air which is either heated, unheated, or cooled.

Audi A4: Deluxe automatic air conditioner. When the air conditioner is operating in the cooling mode, the air is directed Note

When the air conditioner is operating in the cooling mode, the air is directed mainly to outlets 2 and 3. To ensure an adequate cooling effect, you should not close these outlets completely.

Air outlets for rear passengers

The air outlets for the rear cabin are located in the centre console.

The outlets can be opened and closed by turning the thumbwheels.
The direction of air delivery from these outlets can be adjusted horizontally and vertically using the adjuster in the centre of each outlet grille.

The flow of air from the outlets is controlled either automatically or manually, depending on the operating mode selected. All the outlets can provide air which is either heated, unheated, or cooled.

The heater outlets for the rear footwells are located under the front seats.

Audi A4: Deluxe automatic air conditioner. When the air conditioner is operating in the cooling mode the air is directed Note

When the air conditioner is operating in the cooling mode the air is directed mainly to the outlets in the centre console. To ensure an adequate cooling effect, you should not close these outlets completely.

Economical operation of the air conditioner

Economical operation of the air conditioner will help to save fuel.

When the air conditioner is operating in the cooling mode it reduces engine power and increases fuel consumption. To ensure that the cooling mode is activated only when really necessary, please note the following points:

Switch off the cooling mode by pressing the AC button (LED off) if you wish to save fuel.
You should also switch off the cooling mode by pressing the AC button (LED off) if you open the windows or the tilting panorama roof* while driving.
If the vehicle has heated up after standing in the sun, open the windows and doors for a short time to cool the vehicle.

Audi A4: Deluxe automatic air conditioner. By saving fuel you also reduce the amount of pollutants emitted from your vehicle. For the sake of the environment

By saving fuel you also reduce the amount of pollutants emitted from your vehicle.
